5in1 Auto Jump Starter

Description
The 5inl auto jump starter is a very powerful professional grade emergency battery starter with plenty of cranking power (300A) and a fast recharge. The 12,000mAh portable power station also comes with a built-in charger with a high input and a single DC outlet for portable power capable of handling many of travel needs. This unit is equipped with additional safety of a reverse polarity alarm to reduce sparks and possible damage to batteries. It is the first choice for emergency jumping, camping, traveling and more.

Features
1. Such 5inl auto jump starter has heavy-duty high-impact housing ton withstand knocks.
2. The 5inl power system keeps you illuminated, inflated, charged and powered on the road.
3. Adopting built-in analogue charge meter, this 12,000mAh portable power station is energy saving and effective.
4. It has five LED work lights boasting lower power but high brightness.
5. Overload protection is employed.

Application of 5inl Auto Jump Starter

Parameters of 5inl Auto Jump Starter

Size (mm)	160 × 75 × 28
Capacity (mAh)	12000
Weight (g)	350
Output of 12,000mAh Portable Power Station	5V/2A: Mobile Phone, Tablet PC, Other Digital Devices; 12V/10A: 12V Car Electronic Products (Car Refrigerator, etc.); 19V/3.5A: Laptop,12V Car Jump Start
Input:	12V1A
Jump Starter (V)	12
Start Current (A)	200
Peak Current (A)	400
Operating Temperature	-20℃-60℃/-4℉-140℉

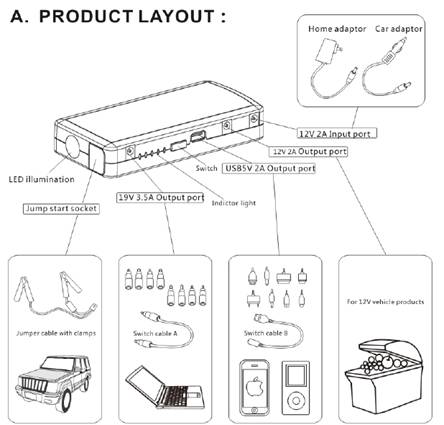

Illustration

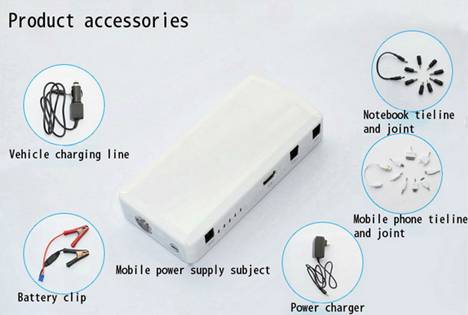

Accessories for 5inl Auto Jump Starter

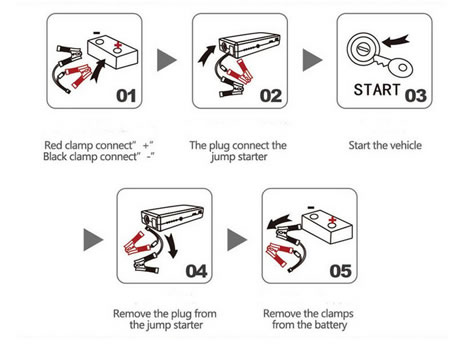

Step for Car Emergency Starting

Operation
1. Choose proper voltage and connector.
2. Connect electronic device to 5inl auto jump starter and turn on the switch.
3. The five work lights will flash during charging and keep bright once the device gets fully-charged. LED lights indicate the balance power of built-in battery of 12,000mAh portable power station. Four lights indicate 80% balance, three lights 60%, two lights 40% and one light 20%. The battery is empty when all LED lights start to flash
4. Press the switch for three seconds to start illumination function.
5. Store 5inl auto jump starter in a cool and dry place and away from direct sunlight

Cautions
1. To start 12V vehicle, firstly please make sure at least three LED lights of 5inl auto jump starter are bright.
2. Then, connect the Red clamp to the battery Positive (+) and Black clamp to the battery Negative (-) terminal.
3. Insert the plug into 12,000mAh portable power station.
4. Finally, turn the switch to the START position. Once the vehicle is started, please disconnect the plug and remove the battery clamps within 30s.
