Mini Jump Starter

Application
Mini jump starter with capacity 8000mAh is suitable for the occasions of long distance travel, camping, small powerboat and exploration. It can be both used as DC or AC switching power supply.

Features
1. Mini jump starter features multi-functional, practical and convenient. It is able to restart the cars for 30 times.
2. The strong LED light of portable jump starter can last at least 40 hours. Besides, mini jump starter can fully charge the cell phone for more than 8 times and support the laptop working for 3 hours.
3. Auto jumper adopts high power polymer cell which features fast charging and low self-discharging. Life cycle of jumper starter is up to 1000 times.
4. Compared with congeneric products, this auto jumper is smaller and lighter with patented technology.
5. The service life of portable jump starter is 5 years.

Instruction for Use
1. Please select appropriate voltage and connector for the electronic device to charge.
2. Connect the red battery clamp of jumper cable to the vehicle’s positive (+) battery terminal and connect the black battery clamp of jumper cable to the vehicle's negative (-) battery terminal.
3. Five lights will flash circularly during the charging process of mini jump starter and all lights will keep bright when your device is fully charged.
4. During charging process of portable jump starter, LED lights indicate the balance power of built-in battery. One light indicates 20% balance and two lights indicate 40% balance, etc. If all LED lights start to flash, it means the built-in battery is empty.
5. Press the switch five seconds to start if you want to use LED for illumination and select the status (light, strobe, SOS, close) by pressing the switch to transform.
6. Please store auto jump in a cool and dry place, also away from direct sunlight.
7. After the vehicle starts, please remove jumper cable from mini jump starter and disconnect red and black clamps to the vehicle battery terminals within 30 seconds.

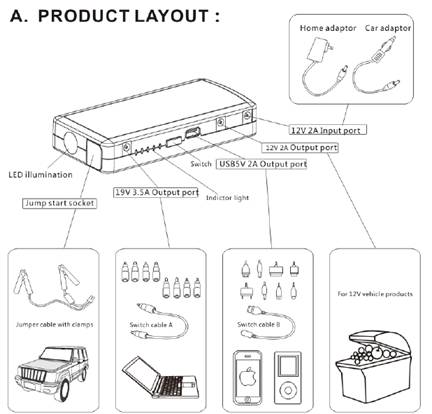

Detain Product Illustration Diagram

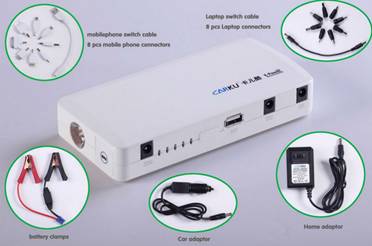

Detailed Product Accessories

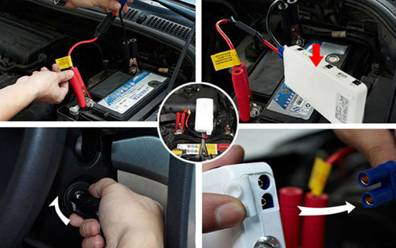

Car Emergency Start Step

Parameters

Size (mm)	160 × 75 × 28
Capacity (mAh)	8000
Weight (g)	350
Output	5V/2A:Mobile Phone, Tablet PC, Other Digital Devices; 12V/10A:12V Car Electronic Products (Car Refrigerator etc.); 19V/3.5A: Laptop,12V Car Jump Start
Input:	12V1A
Jump Starter (V)	12
Start Current (A)	200
Peak Current (A)	400
Operating Temperature	-20℃-60℃/-4℉-140℉
