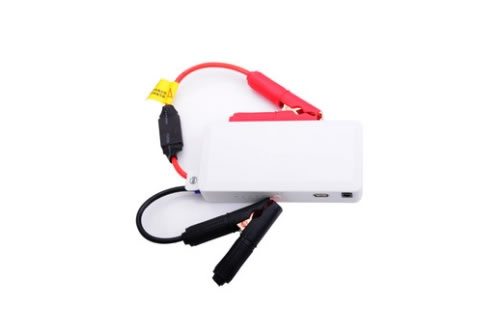

Portable Battery Booster

Introduction
Portable battery booster, also called multi-function car jump starter, is a method of starting a vehicle that is unable to be self-started due to insufficient power to the starter motor from a discharged starter battery. Carwanta battery booster is employing safe, durable and eco-friendly lithium cell instead of traditional lead-acid battery. It features light weigh, powerful function, good workmanship, etc. Its functions are highlighted by supporting 12V vehicles for emergency start, portable illumination, and charging of mobile phone, PSP, pocket PC PDA as well as MP3/4/5.

Advantages
1. Such portable battery booster has advantages of low self-discharging and supporting fasting charging.
2. The cycle life is 1000 times.
3. The capacity of multi-function car jump starter is 12,000mAh. The starting current is 200A and the peak current 400A.
4. With USB output, portable battery booster becomes more convenient.
5. The operating temperature ranges from minus 20℃ to 60℃ or minus 4℉ to 140℉.

Parameters of Portable Battery Booster

Size (mm)	160 × 75 × 28
Capacity (mAh)	12000
Weight (g)	350
Output of Multi-Function Car Jump Starter	5V/2A: Mobile Phone, Tablet PC, Other Digital Devices; 12V/10A:12V Car Electronic Products (Car Refrigerator, etc.); 19V/3.5A: Laptop,12V Car Jump Start
Input	12V1A
Jump Starter (V)	12
Start Current (A)	200
Peak Current (A)	400
Operating Temperature	-20℃-60℃/-4℉-140℉

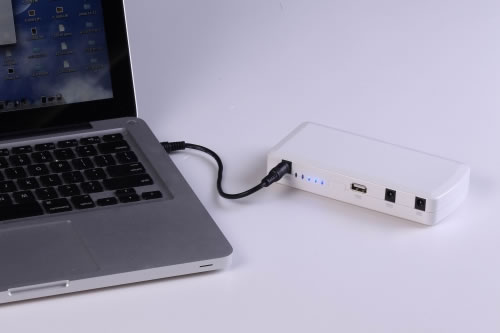

Application of Portable Battery Booster

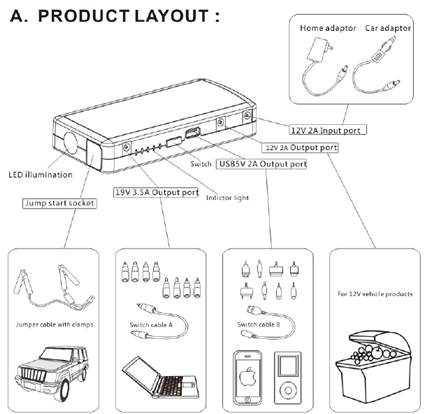

Illustration

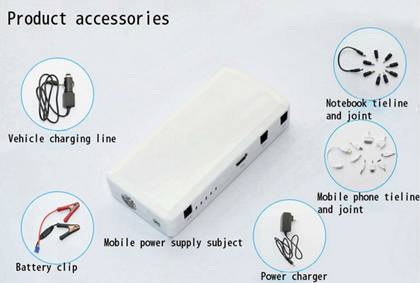

Accessories

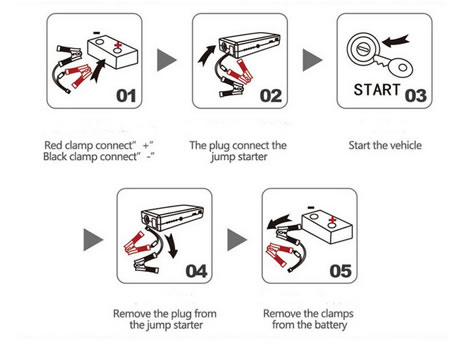

Steps for Car Emergency Starting

Operation
1. Select appropriate voltage and connector for the electronic device.
2. Press switch to start charging when your device get connected with portable battery booster. If you unplug the cable, auto-sleep will start in one minute.
3. Five lights will flash circularly during the charging and all lights will keep bright when your device is full-charged.
4. During the charging, LED lights indicate the balance power of built-in battery of multi-function car jump starter. Four lights indicate 80% balance, three lights 60% balance, two lights 40% balance and one light 20% balance. The built-in battery is empty when all LED lights start to flash.
5. Press the switch for three seconds when you want to use LED for illumination and select the status (light, burst flashing, SOS, close) by pressing the switch to transform.
6. Portable battery booster should be stored at cool and dry place and away from direct sunlight.

Instruction for Starting 12V Vehicle
1. Make sure that the number of indicators on the portable battery booster is not less than 3.
2. Connect the RED clamp to the vehicle's battery positive (+) terminal and connect the BALCK clamp to the vehicle's battery negative (-) terminal.
3. Plug the cord of jumper cable into the jump start socket of multi-function car jump starter.
4. Start the vehicle.
5. When the vehicle is started, remove the jumper cable from portable battery booster and disconnect RED and BALCK clamps to the vehicle battery.
6. Leave the vehicle's engine running.
