Portable Vehicle Jump Starter

Description
Portable jump starter is a kind of emergency power supply. It can be either as AC/DC power supply or illumination in mountainous area or pasturing area (where has no power), field study and traveling.

Application
Portable jump starter is suitable for various mobile phone, PSP, MP3/MP4, PDA, laptop, small power boat and car refrigerator. It is also used in long distance travel, camping and exploration.

Advantages
1. Portable jump starter adopts high power polymer cell which features fast charging and low self-discharging. Life cycle of jumper starter is up to 1000 times.
2. Compared with similar products, portable vehicle jumper is smaller and lighter with patented technology.
3. Portable jump starter supports three kinds of lighting modes including light, strobe and SOS.
4. It adopts multiple safety protection design to ensure zero defect of portable vehicle jumper.

Instruction for Use
1. Please make sure that the number of indicator light should not less than 3.
2. Connect the red battery clamp of jumper cable to the vehicle's positive (+) battery terminal and black battery clamp to the negative (-) one.
3. Please plug the cord of jump cable into the jump start socket.
4. After the vehicles start, please remove jump cable from portable jump starter and disconnect red and black clamps to the vehicle battery terminals within 30 seconds.

Instruction for Charging to Mobile Phones or Tables
1. Plug the phone or tablet cable to USB 5V/2A output port.
2. Please select appropriate connector for your mobile phone or tablet. Press the switch button to charge.

Warning
1. Please do not start the vehicle when the indicate light is red.
2. When the buzzer is buzzing and the indicate light is red, please charging for portable jump starter immediately.
3. When the buzzer is buzzing and the indicate light is green, please remove portable vehicle jumper from vehicle battery immediately.
4. Please remove portable jump starter from the vehicle within 30s after the vehicle is started.
5. Please do not connect the two clamps of portable vehicle jumper in case of danger.

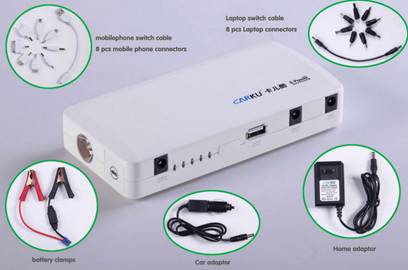

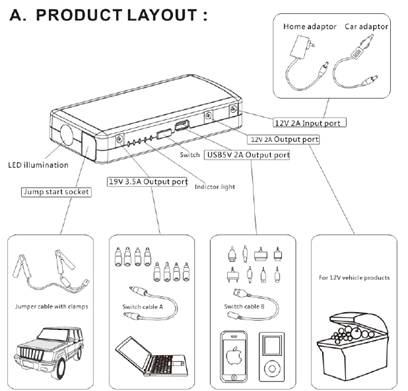

Detailed Illustration of Product Function

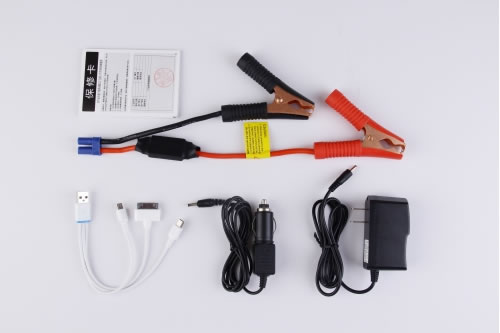

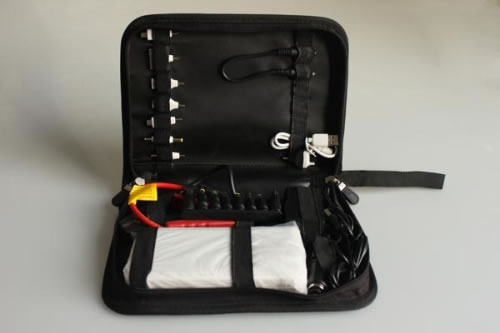

Detailed Product Accessories

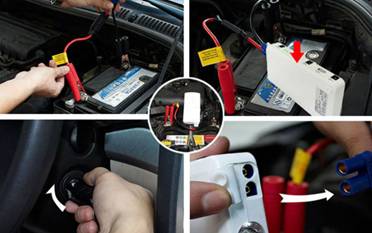

Car Emergency Start Step

Parameters

Size (mm)	160 × 75 × 28
Capacity (mAh)	8000mAh
Weight (g)	350
Output	5V/2A: Mobile Phone, Tablet PC, Other Digital Devices; 12V/10A:12V Car Electronic Products (Car Refrigerator etc.); 19V/3.5A: Laptop, 12V Car Jump Start
Input	12V1A
Jump Starter (V)	12
Starting Current (A)	200
Peak Current (A)	400
Operating Temperature	-20℃-60℃/-4℉-140℉
