12000mAh Fashionable Jump Starter

Introduction

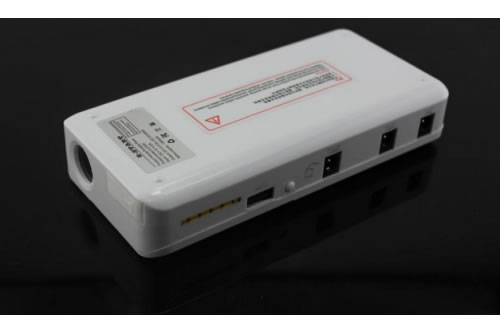

The fashionable jump starter with capacity of 12,000mAh is manufactured by Carwanta features fast charging, wide application and multiple functions. With the weight of only 350g, this jump starter is light but powerful. The starting current is 200A and the peak current 400A. Besides, it can be working under the temperature of minus 20℃. In addition, our fashionable jump starter has various safety protection designs to ensure it zero defects. Due to these, it, after coming to the market, is popularly adored by car drivers, businessmen, etc.

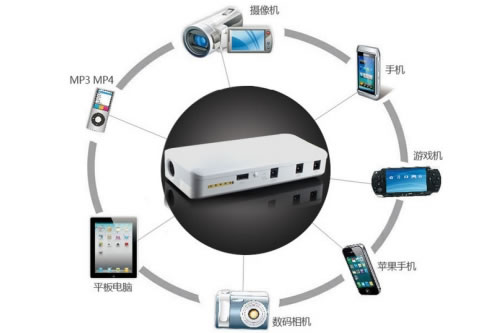

Application
1. Light and small, this fashionable jump starter with capacity of 12,00mAh is suitable for emergency power supply in long distance traveling, camping, exploring and sailing as well as places where there can not connect to wires.
2. Portable as it is, it can also be used as AC/DC power supply at inspection in remote outdoors for lighting and the charging of mobile phones, etc.

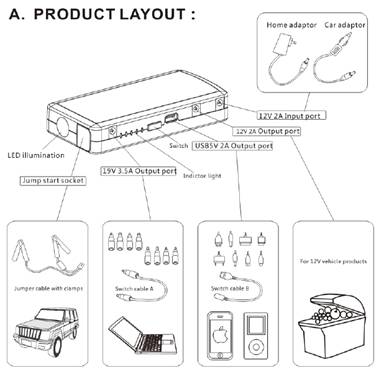

Illustration

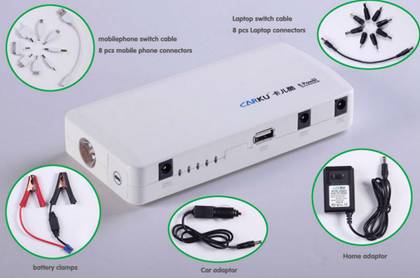

Accessories for Fashionable Jump Starter

Steps for Car Emergency Starting

Parameter of Fashionable Jump Starter with Capacity of 12,000mAh

Size (mm)	160 × 75 × 28
Capacity (mAh)	12000
Weight (g)	350
Output	5V/2A: Mobile Phone, Tablet PC, Other Digital Devices; 12V/10A: 12V Car Electronic Products (Car Refrigerator, etc.); 19V/3.5A: Laptop, 12V Car Jump Starting
Input	12V1A
Jump Starter (V)	12
Start Current (A)	200
Peak Current (A)	400A
Operating Temperature	-20℃-60℃/-4℉-140℉

Operation
1. Select the appropriate voltage and connector for the electronic device.
2. Turn on the switch after the device is connected to fashionable jump starter.
3. Five lights will flash circularly during the charging and all lights will keep bright when your device is full-charged.
4. During charging, LED lights indicate the balance power of built-in battery of fashionable jump starter. Four lights indicate 80% balance; three lights 60%; two lights 40% and one light 20%. And the five flashing lights indicate the battery empty.
5. Press switch of fashionable jump starter with capacity of 12,000mAh to get illumination, burst flash or SOS.
6. Keep the product at cool and dry place away from direct sunlight.

Note

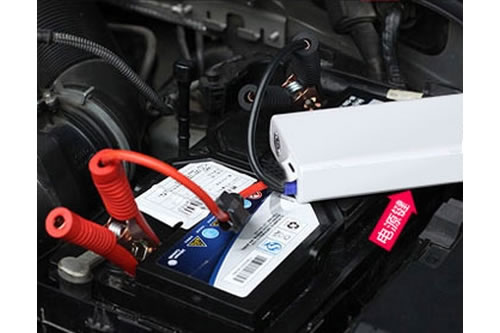

In order to start a 12V vehicle, users should at first ensure there are at least three LED lights bright. Then, connect Red clamp to battery Positive (+) and Black Clamp to Negative (-) and insert plug into fashionable jump starter. At last, turn ignition switch to START position. Remember to disconnect the plug and remove the clamps in 30s as long as the vehicle is started.
