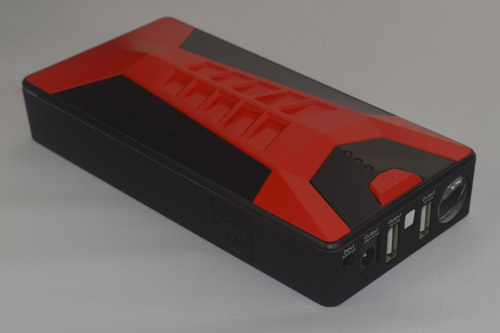

EP-04B Auto Jump Starter

Introduction
Car jump starter is a kind of multifunctional portable power designed for people who often drive cars on business or for personal trips. It offers the method of starting a vehicle that is unable to be self-started due to insufficient power or other reasons. It is one outdoor travel essential, as it combines the air pump, emergency power source and the outdoor lighting together.

Funtion & Application
1. Automobile:
Lithium-polymer car jump starter is supposed to has the maximum current of 300 to 400 A. With a compact size, it is a suitable auxiliary starting power for most cars and a few boats. In addition, it can also serve as a portable DC power in case of emergency.
2. Laptop:
With 19 V voltage output, multifunctional car jump starter can be used to provide laptops with stable power supply, so as to satisfy the needs of some businessmen whose laptop can’t work for a long time but there is a need for it. Generally, 12000 mA lithium-polymer battery is capable of supplying laptops with power to work for another 240 minutes.
3. Mobile phone:
With 5 V voltage output, car jump starter is suitable for Iphone, Anycall, HTC, Sony Ericsson, Nokia, Motorola, BlackBerry smartphones, and other electronic products like cameras, PND, PSP and MP3.

Characteristics
1. The multifunctional car jump starter is in size of 155×74×31.5mm with the capacity of 7500mAh.

2. This type of products is suitable for all the cars with 12V output. But for cars with different displacements, suitable jump starters may be in different types.
3. The standard configuration includes LED bright light, flicker warning light as well as SOS signal light, making the car jump starter a good helper for outgoing and traveling.
4. The products supply output of 5V/1A/2A for mobile phone, tablet PC, and other digital devices, output of 15V/10A for 12V car electronic products such as car refrigerator etc and 12V car jump start.
5. Start the car with the car jump starter only when more than three battery indicating lights are still on. Otherwise, the main system of car power supply may get damaged. Remember to charge the product.

Advantages
1. The products are integrated and multifunctional, which support car jump starter and charge all kinds of mobile phone, tablet pc, laptop as well as other digital electronics. Also, they have different illumination functions.
2. We provide customers with environment-friendly Lithium battery of optional capacity.
3. The car jump starter is light in a mini size so that it’s portable.
4. The product features in fast charge and car starts instantaneously
5. With the design of multi-protection, product safety is ensured.
6. The longer lifetime battery is able to charge circularly for over 1000times
7. Better operating temperature ranges from -20℃ to 60℃.
8. We are the earliest in the field to get ISO9001 quality certification. Our car jump starters also conform to EU CE, Rohs certification, American FCC certification, Australia C-Tick certification as well as the battery export required MSDS certification and domestic 3C certification.
9. We have participated in relative domestic exhibitions for several times and our products are exported to America, Russia, Japan, Middle East, etc. Customers throughout the world speak highly of our high quality products and our considerate service.

Parameters of EP-04B Car Jump Starter

Parts:
1. 1pc Home Adaptor
2. 1pc Car Adaptor
3. 1pc Smart Jumper Cable
4. Laptop connectors×8+ switch cable×1
5. 4in1 USB to micro USB, mini USB, iPhone4, iPhone5 cable

Charging steps for lithium-polymer battery
1. Put the plug of the attached charger cable into the charging connections of the car jump starter and make sure that they are connected well.
2. Put the other end of the charger cable into the socket and also make sure that they are connected well.（220V）
3. At this time, the charging indicator of the car jump starter is lighted up, indicating that the battery is being charged.
4. When the charging process is finished, the indicator turns off. After an hour, if the battery voltage test shows it meets with the requirement, the battery is proved to be fully charged.

Attentions:
1. Strictly stick to the operation sequence of car emergency start when using a car jump starter.
2. Don’t start the car when less than three battery indicating lights are still on. Otherwise, the main system of car power supply may get damaged.

3. Please remove the main device within 30 seconds since the car gets started.
4. Don’t charge for more than 24 hours.
