EP-01B/EP-02/EP-03 User Manual

Thank you for choosing the Jump Starter! Please read carefully and strictly obey the instructions when using the starter. Our product is of high quality, remarkable efficiency and multiple functions. In addition to starting a car, it can multi-used as power supply for electronic products like mobile phone, PSP, camera, etc. Plus, the starter also functions as illumination device and SOS signal. These functions enable the jump starter to be suitable for long distance travel, business trip, camping and sailing in places like mountain area.

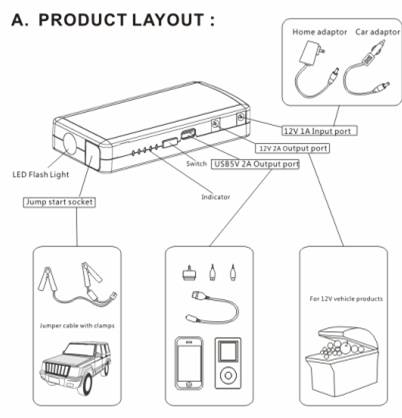

A. Product Layout

B. Operation Guidance

1. Indicator Lights
Press the switch button to check the capacity of Jump Starter

Indicator Lights	Unlit	5 Flashing	1 Bright	2 Bright	3 Bright	4 Bright	5 Bright
Battery Capacity	0%	10%	20%	40%	60%	80%	100%

During charging, the LED lights will flash circularly and they can indicate the battery capacity of jump starter as well. As long as the charging is finished, all five lights will keep bright. Four bright lights indicate 80%, three 60%, two 40% and one 20%.

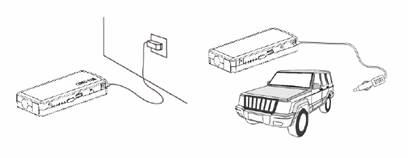

2. Jump Starter Charging Instruction
1. Plug the home adaptor into the universal socket.
2. Connect 12V 1A input port of jump starter to the other end of home adaptor.
Or
1. Plug the car adaptor into the socket of cigarette lighter.
2. Connect 12V 2A input port of jump starter to the other end of car adaptor.

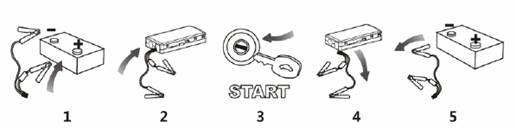

3. Instructions of Jump Starting 12V Gasoline Vehicle
1. Make sure that the number of indicator light is not less than 3 ones.
2. Connect the RED clamp to the vehicle’s battery positive (+) battery terminal and connect the BLACK clamp to the vehicle’s battery negative (-) terminal.
3. Plug the cord of jumper cable into the jump starter socket.
4. Start the vehicle.
5. When the gasoline car starts, remove jumper cable from jump starter immediately and disconnect the clamps.
6. Leave the vehicle’s engine running.

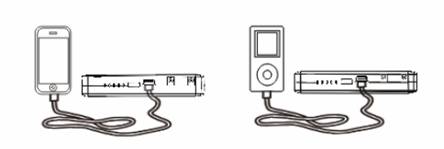

4. Instruction of Charging Cell Phone or Tablet PC
1. Plug the switch cable B to USB 5V 2A output port.
2. Select appropriate connector and connect it to your mobile phones or tablet PC.
3. Press the switch button to charge.

5. Instruction of Power Supply to 12V Vehicles or 12V Electronics
1. Plug the optional switch cable to 12V 2A output port.
2. Connect the optional switch cable to 12V vehicle product or 12V electronics.
3. Press the switch button to power supply.

6. LED Flash Light
1. Press the switch 3 seconds to start the LED flash light.
2. There are 4 modes of LED light appear in order (normal. strobe. SOS) if you press slightly.

C. Part List

	Parts Name	Quantity		Parts name	Quantity
1	Host	1	5	Home adaptor	1
2	Switch cable	1	6	Car adaptor	1
3	Cell phone/table connectors	3	7	Jumper cable with battery clamps	1
4	Home adaptor	1		User manual

D. Technical Specifications

Size	160 × 75 × 28 mm
Weight	400g
Output	5V/2A, 12V/2A
Input	12V/1A
Full Charging Time	3 hours
Starting Current	200 A
Peak Current	400 A
Operating Temperature	-20℃-60℃

E. FAQ
Q: How to turn off this jump starter?
A: This device will power off automatically so long as there is no load or the charging is completed.
Q: How many times can this appliance charge for a mobile phone?
A: Generally, this jump starter can charge iPhone for five to seven times.
Q: How long will Carwanta product take to charge a mobile phone fully?
A: Usually, it takes approximately one hour.
Q: How many times can this appliance on a full charge to start the vehicle?
A: Approx.20 time.
Q: How long will the power of battery of this appliance remain?
A: 6-12months. However, we suggest you recharge it every 6 months.

F. Trouble Shooting

Finding	Cause	Remedies
Jump starter is still not full charged while its 5 indicator lights are solid.	60% charging for longer storage of jump starter when no use.	Unplug the adaptor and plug it again.
No response when pressing the switch button.	Low voltage protection of Jump Starter is started.	Plug the adaptor into the 12V/2A input port to activate.

G. Toxic and Harmful Substances

Composition and amount of toxic and harmful substances in Jump Starter
Pb	Hg	Cd	Cr(Vi)	PBB	PBDE
O	O	O	O	O	O
O: Indicate all homogeneous materials' hazardous substances content are below the MCV limit specified in the Standard 2002/95/EC (RoHs).

H. Cautions
1. Ensure the blue plug of jumper cable connects with the jump starter socket tightly before jump starting a vehicle. Otherwise, it will affect the effects, even causing the melt of the blue plug.
2. Check if the jumper clamps are well connected.
3. Check if the vehicle battery connector is rusted or dirty. If so, clean it firstly before operation.
4. Do not jump start again after 3 attempts. Otherwise, it will damage the vehicle. Check your vehicle to see if it has other problems.
5. Do not disassemble the two clamps. Otherwise, it may be dangerous!
6. Do not disassemble the jump starter. Otherwise, it may be dangerous!

I. Warranty Information
We offer a limited warranty for jump starter against any defects in material and workmanship for a period of 6 months from the date of purchase by the end user/consumer. The conditions of the warranty are as follows:
1. The warranty is only valid upon presentation of the original receipt (from dealer/retailer) by the original purchaser with the product to be repaired or replaced.
2. The warranty is void if the serial number, date of purchase or label has been removed.
3. The warranty does not cover damage or product failure resulted from normal wear and tear, physical abuse, improper installation, misuse, modification or repairs by unauthorized third parties.
4. We do not assume responsibility for any loss or damage incurred during shipment or as a result of a force majeure.
5. We are not liable for any incidental or consequential damage brought by the misuse of this product.
6. All warranty claims are limited to repair or replacement of the defective product and subject to our discretion.
7. If we repair or replace the product, the new one will be covered for the remaining time of the original warranty period. Repair or replacement may involve the use of reconditioned units which are equivalent in function. Replaced part or product belongs to us.
8. Consumable components such as batteries are not covered by the warranty.

Applied Standard: GB/T 18287-2000
