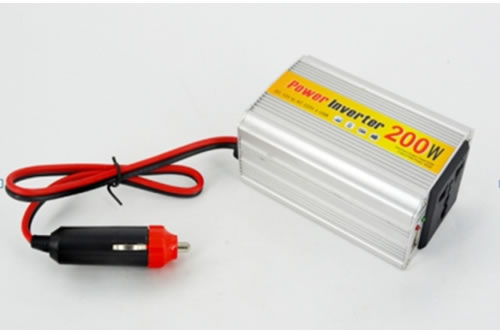

CWT-I004 Car Power Inverter

Introduction
The CWT-I004 DC to AC power inverter is an electronic product that has been designed and built to take low-voltage direct current power from car or other power supplies and convert it to 220V alternating current power. This conversion process thereby allows users to use many household appliances and electronic products in cars, recreational vehicle, and virtually anywhere else. The rated output power is 500W whereas the peak power is 1000W, much higher than that of CWT-I003. In terms of weight and size, CWT-I004 weighs 0.77 kg and is 172 mm long. Commonly, it is packed in carton.

Advantages
1. DC to AC power inverter is designed and manufactured by experienced senior engineers with advanced technology.
2. It has good performance and is highly cost-effective.
3. Our product wins universal acknowledgement around the world.
4. This power inverter has functions of under voltage alarm, thermal and overloading protection.

Parameters of DC to AC Power Inverter for Car

Input (V)	DC 24V (22-30)
Output (V)	AC220V ± 5%
Rated Output Power (W)	500
Peak Output Power (W)	1000
Output Frequency (Hz)	50/60 ± 4
USB Output Voltage (V)	5V 1A Max
Output Waveform	Modified Sine Wave
Efficiency	≥ 87%
Under Voltage Protection (V)	21-22
Under-Voltage Cut-off Output (V)	≤ 20
Over-Voltage Cut-off Output (V)	≥ 31
Socket	Universal Socket (Generally used)
Overloading Protection (W)	≥ 600
Over-Temperature Protection	≥ 60°
Short Circuit Protection	Yes
Dimension (mm)	172 × 89 × 49
Packaging Mode	Blister
Weight per Unit (Including Package) (Kg)	0.77
Net Weight/Gross Weight (Kg)	19.5/20.5
Carton Dimension (cm)	63 × 37.5 × 31.9
Set Per Carton	25
Warranty Period	12 months
Minimum Order Quantity	25PCS

Cautions
1. The DC to AC power inverter for car is expected to be placed at dry, cool and ventilated site.
2. Users should charge the inverter promptly to prevent power failure which does harm to car starting and battery lifetime.
